The lamps of the NNILight series are a highly cost-effective way to disinfect water due to its higher UVC output and lower maintenance costs.

NNILight – Out of Arc lamps to purify water

Highest power lamps for water disinfection with 800, 1000 or 1500 W

NNILight - UV lamp for water disinfection
Lamps of the NNILight series are the state-of-the-art UV solution to disinfect our drinking water.

The lamps of the NNILight series are a highly cost-effective way to disinfect water due to its higher UVC output and lower maintenance costs. End users benefit from a significantly lower total cost of ownership compared to other low pressure lamps as a result of longer operating lifetime and decreased downtime.

The result: Cleaner drinking, waste and industrial water, in agriculture, aquaculture, or food and beverage production.

The NNILight series is not only a reliable and costeffective solution, but comes with all the advantages of Noblelight OoA amalgam lamps. As an effective solution for water disinfection, they provide an excellent economic and ecological choice due to their maximum lifetime and optimized energy consumption. The lamp temperature stability over a wide water temperature range – while dimming as well – makes your disinfection system highly efficient. Furthermore, NNILight can be used not only as UVC-lamps for disinfection or AOP applications. As an ozone generating version our lamps produce ozone to destroy chemical pollutions in air or generate OH-radicals in water in TOC applications.

Our customer focus makes the difference: We are always at your side, with our know-how, experience and consulting. That makes us a true and reliable partner. We packed the most advanced technology into our lamps. With the robust design and reliable quality, we ensure that your customers are satisfied.

 Brochure NNI800Light/ NNI1000Light

 Brochure NNI1500Light

Table of Content

NNI800Light/ NNI1000Light

NNI800Light/ NNI1000Light

NNI800Light and NNI1000Light (800 W and 1000 W) are not only state-of-the-art solutions, but come with all the advantages of a technology leader and tested supplier. We are proud to provide you with the expertise you need for the best possible water disinfection by being innovative, reliable, and, of course, a true partner. Therefore, our product portfolio is a reflection of our close collaboration with our customers.

NNI800Light Technical data NNI1000Light Technical data
Lamp Power 800 W 1000 W
Operating Position horizontal to vertical horizontal to vertical
Tube Temperature max. 150°C max. 150°C
Tube Diameter 38 mm 38 mm
Arc Length 1600 mm 2000 mm
Radiation Flux at 254nm 300 W 370 W
Available as ozone generating/ ozone free ozone generating/ ozone free
Customizing Options lamp bases, connectors lamp bases, connectors

Longer Lifetime

The NNILight series outperforms other lamps on the market with its high output and robust design. This makes the NNILight the preferred choice not only in economical terms, but also in enviromental terms.

The NNILight series outperforms other lamps on the market with its high output and robust design and a longer lifetime.

More Efficiency, Lower Maintenance Costs.

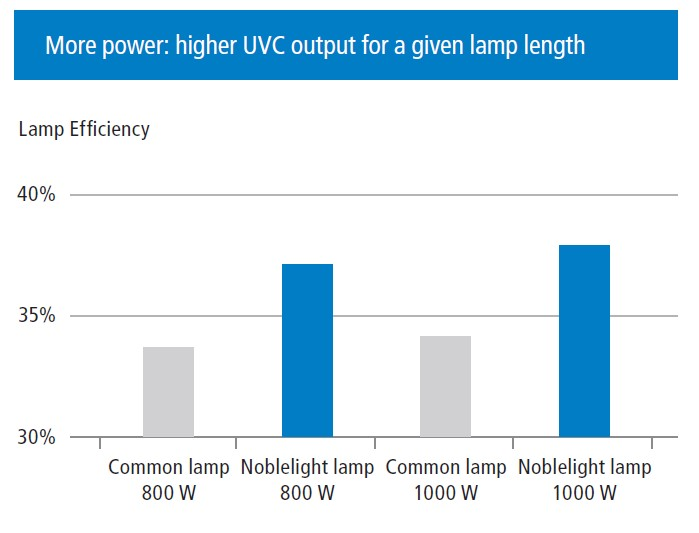

The reliability of the NNILight series saves money due to fewer lamp replacements and lower maintenance costs. Their improved efficiency results in a higher UVC output compared to common lamps. Therefore, implementing the NNILight series, means you will need fewer lamps for the same UVC output.

The reliability of the NNILight series saves money due to fewer lamp replacements and lower maintenance costs.

The result is a very favorable total cost of ownership, compared to other low pressure lamps. In addition, the innovative light is environmentally friendly due to its sustainable production process.

  • Same UV power with fewer lamps
  • Less maintenance
  • Less electrical power needed
  • Less downtime due to fewer repacements
  • Less material/ wiring needed
  • Less spare parts
  • Less head losses
Same UVC power with fewer lamps

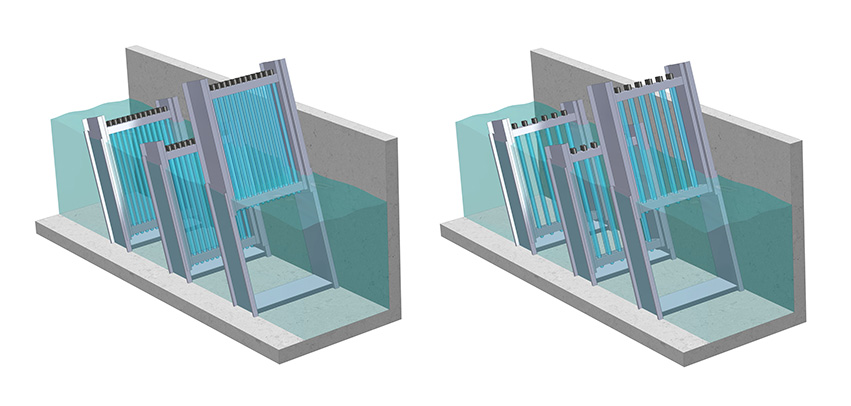

The illustration on the left shows a common UVC lamp, while the picture on the right shows the use of NNILight lamps with the same UVC power but fewer lamps.

NNI1500Light

NNI1500Light

The NNI1500Light is the lamp for the next generation with significantly more UVC output and lower maintenance costs. Lower downtime and head losses ensures excellent overall treatment efficiency. All of this results in the lowest total cost of ownership for water treatment users.

NNI1500Light Technical data
Lamp Power 1500 W
Operating Position horizontal to vertical
Tube Temperature max. 150°C
Tube Diameter 38 mm
Arc Length 2000 mm
Radiation Flux at 254nm 490 W
Available as ozone generating/ ozone free
Customizing Options lamp bases, connectors

Highest Power and UVC Output

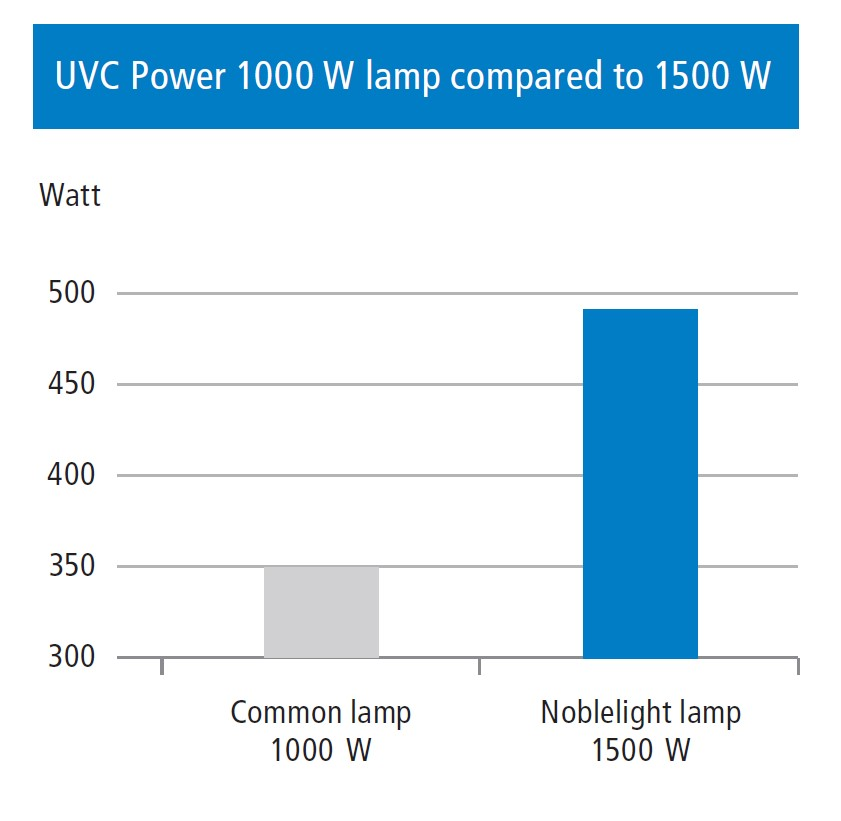

Power beyond limits: With 1500 W, the NNI1500Light significantly outperforms to 1000 W lamps.

With major impact: Owing to more powerful UVC disinfection, the use of NNI1500Light enables higher flow rates and is thus the best choice for your plant – no matter if newly-planned or as part of upgrading existing treatment facilities.

Moreover, in a given area or reactor, the NNI1500Light reduces the number of lamps needed, due to its unmatched power density. It’s the perfect lamp solution for large-scale installations.

Power beyond limits: With 1500 W, the NNI1500Light significantly outperforms to 1000 W lamps.

Lower Downtime and Maintenance Costs

The NNI1500Light is a highly cost-effective way to clean water. It’s reliability saves money through fewer lamp replacements and lower maintenance costs as well as fewer additional components such as sleeves or power supplies.

The result is the lowest total cost of ownership, compared to all other low pressure lamps. In addition, the innovative lamp is environmentally friendly thanks to its sustainable production process.

Customized Solutions

As technology leader and proven experts, we are committed to finding the best solution for each individual environment. Together, we look at your challenges and tasks, consult with you using our detailed know-how and long-term experience and develop new superior products to satisfy your customers.

Please contact us for your individual configuration!
