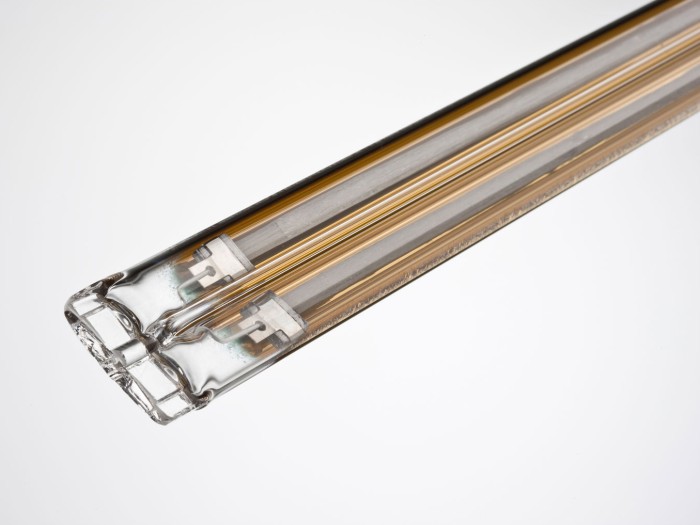

Noblelight carbon infrared emitters CIR® feature a unique design of the heating filament that combines the efficient radiation with very short response times in the seconds range. The unique twin-tube layout of the Noblelight carbon emitters (the "Golden 8") gives them higher radiation density and improved mechanical stability. Carbon infrared emitters are also available as round tube.
Carbon infrared emitter CIR® - for the efficient drying of water-based or aqueous coatings
Your advantages
- High-quality quartz glass for good transmission and thermal stability
- Carbon heating filament with very short response time
- Robust ceramic lamp base
- Gold reflector for directed radiation and high efficiency
- Twin quartz tube (the "Golden 8") for high stability and double power, available with different lengths
Technical data
Carbon twin-tube emitters IR emitters | Carbon round tube IR emitters | |
---|---|---|
Power | 60 W/cm | 30 W/cm |
Max. heated length | 5000 mm | 1500 mm |
Cross-section | 34x14 mm | 19 mm |
Filament temperature | 1200°C | 1200°C |
Wavelength | 2 µm | 2 µm |
Max. power density | 110 kW/m² | 85 kW/m² |
Response time | 1 - 2 s | 1 - 2 s |
